• Quad 400s - 85Mph
• Quad 500s - 92Mph
• Quint 500s - 100Mph !
• LOA: 42′-0″
• Beam: 12-‘2″
• Deadrise @ Transom: 24°
• Draft (engines down): 42″
• Draft (engines up): 31″
• Dry Weight w/ Quint Mercury 500R: 16,000 lbs
• Loaded Weight: 23,000 lbs
• Max HP: 2,500
• Fuel Capacity: 500 gallons
• Fresh Water Tank Capacity: 43 gallons
• Waste Tank Capacity: 43 gallons
• 100% Composite Construction
• Vacuum Infused Epoxy Throughout Entire Build
• Vacuum Infused Stringer System
• Military Grade Construction
• Structural Adhesive Hull Structure to Deck Bond
• Carbon Fiber Structural Bonds around all Doors and Engines
• Hull and Deck Fully Glassed Together at Rubrail Joint
• Carbon Fiber Hardtop Legs and Windshield Frame
• Vaccuflush Electric Head
• Pressurized Fresh Water System
• Fresh Water Washdown
• Raw Water Washdown
• Stainless Steel Deck Hardware
• 9.5″ Yacht Quality S.S. Flush Mount Pull Up Deck Cleats, qty 8
• Heavy Duty Rub Rail with Stainless Insert
• Bow and Stern Thrusters (Joystick Control)
• Dual 4000gph Bilge Pumps – Midship & Bilge
• 40lb Stainless Steel Plow Anchor with Swivel
• 1500w Electric Windlass with Bow Controls
• Carbon Fiber Hull/Anchor Guard
• Sea Chest w/ High Performance Pickup
• Dedicated Mechanical Rigging Compartment
• Heavy Duty Marine Grade UV Stable Upholstery
• Refrigerated Cool Box Located in Aft Back Bar
• 12K BTU Cabin Air Conditioner
• Quad 400s or
• Quad 500s or
• Quint 500s
• Digital Shift & Throttle Control
• Autopilot
• Integrated Bow & Stern Thrusters

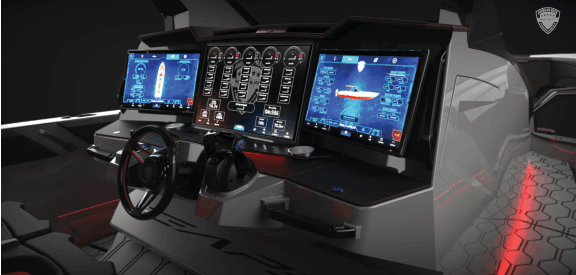

• Dual 19″ Garmin Helm Screen
• Single 24″ Garmin Helm Screen
• Upgraded 1kw Transducers
• Premium Sound System
• Digital Switching
• Full Wrap Around Coaming Bolsters

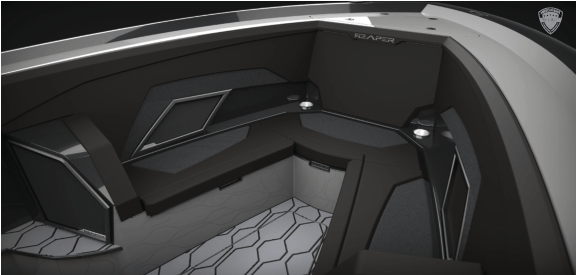

• FWD Lounge Entertainment Area

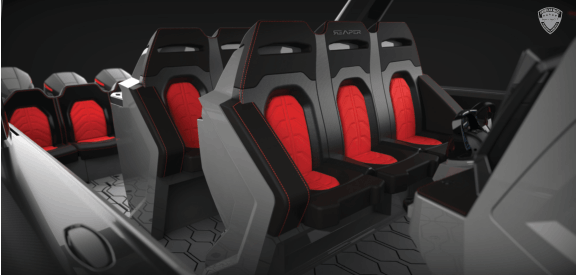

• Dual Row Helm Seating for 6 People
• Dual Side Door Entry
• Dual on Deck Tip Out Trash Cans
• Aft Hardtop Freshwater Rain shower
• 7 Below Deck Storage Compartments
• Storage Under Front Helm Seats
• Separate Full Bathroom
• Queen Sized Bed / Lounger
• Air Conditioner
• Seakeeper – SK3
• Generator – 8kw
• Visual Carbon Legs and Windshield Frame
• Linex Sprayed Utility Storage Compartments
• Synthetic Teak Decking System
• Stage II U/W (lights located at hull steps)
• FWD Seating Mount Garmin 8622 XSV
• Helm Overhead Mount Garmin 8617XSV
• Transducer, 1kW High Freq. CHIRP, Airmar 175H
• Transducer, 1kW Low Freq. CHIRP, Airmar B175L
• Radar, Garmin GMR Phantom 24, Closed Dome
• VHF, Garmin 315 [w/ 4′ VHF & AIS Antenna, HD. S.S. Ratchet Mount]
• SkyHook Joystick Contorl, Mercury
• Autopilot, Garmin
• Evolution, Aluminum, Painted, Goose Neck Trailer (3 – 10k axles)
• Evolution, Aluminum, Painted, Pintle Hitch Trailer (3 – 10k axles)
• Custom Paint Engines (Quint)
• Custom Paint Engines (Quad)
• Hull Paint Upgrades
